Studying Tekton: A Kubernetes-Native CI/CD Tool
What is Tekton?
Tekton is a Kubernetes-native CI/CD tool that provides developers with a robust framework for building and deploying applications in a container-based environment. It leverages Kubernetes resources, allowing seamless integration with existing Kubernetes infrastructure. Tekton comes with a comprehensive set of tools for building, testing, and deploying applications while offering a large library of reusable components to simplify the automation process.
Why Learn Tekton?
My interest in Tekton arose from its Kubernetes-native design. As I explore the Kubernetes ecosystem, understanding how tools are built and operate within this environment is essential. During my learning journey, I built a CI/CD pipeline for both my homelab and cloud environment using Terraform, integrating a GitHub trigger. My goal was to compare the difficulty of replicating the same pipeline setup I have in GitHub Actions using Tekton.
The Tekton Pipeline
Disclaimer: This section assumes the reader is familiar with Kubernetes concepts such as secrets, namespaces, services, and persistent volume claims.

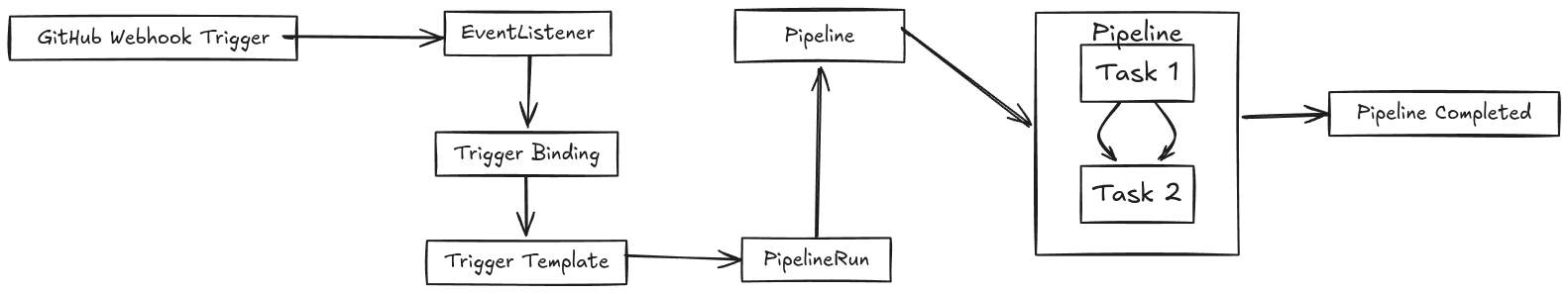

Understanding the Tekton Flow
Looking at the Tekton flow diagram, the architecture seems straightforward, but for a newcomer, it can be moderately challenging. Tekton can function without triggers by allowing manual pipeline or task execution. However, I prefer automation, requiring webhooks, triggers, and other integrations.
One of my motivations for writing this post is the lack of clear documentation on GitHub integration with Tekton. Making my pipeline work 100% required learning through trial and error.
Tekton Triggers
This is the typical pattern for creating a trigger for a GitHub webhook. The EventListener creates a Kubernetes service that receives incoming webhooks and sends the request to the EventListener pod. Based on the configured interceptors, the EventListener decides whether to process the request. If the request is approved, the trigger extracts required information like the GitHub repository URL and commit SHA using a TriggerBinding. Finally, it uses this data to populate the TriggerTemplate, which references the corresponding pipeline that needs to be executed.
Event Listener Configuration:
1apiVersion: triggers.tekton.dev/v1alpha1
2kind: EventListener
3metadata:
4 name: github-pr
5 namespace: tekton-pipelines
6spec:
7 serviceAccountName: tekton-triggers-sa
8 triggers:
9 - name: github-listener
10 interceptors:
11 - ref:
12 name: "github"
13 params:
14 - name: "secretRef"
15 value:
16 secretName: github-interceptor-secret
17 secretKey: secretToken
18 - name: "eventTypes"
19 value: ["pull_request", "push"]
20 - ref:
21 name: "cel"
22 params:
23 - name: "filter"
24 value: "body.action in ['opened', 'synchronize', 'reopened']"
25 bindings:
26 - ref: github-pr-binding
27 template:
28 ref: github-pr-pipeline-plan-template
Trigger Binding Configuration:
1apiVersion: triggers.tekton.dev/v1alpha1
2kind: TriggerBinding
3metadata:
4 name: github-pr-binding
5 namespace: tekton-pipelines
6spec:
7 params:
8 - name: gitrepositoryurl
9 value: $(body.repository.clone_url)
10 - name: gitrevision
11 value: $(body.pull_request.head.sha)
Trigger Template Configuration:
1apiVersion: triggers.tekton.dev/v1alpha1
2kind: TriggerTemplate
3metadata:
4 name: github-push-pipeline-apply-template
5 namespace: tekton-pipelines
6spec:
7 params:
8 - name: gitrevision
9 description: The git revision (SHA)
10 default: "$(body.head_commit.id)"
11 - name: gitrepositoryurl
12 description: The git repository URL
13 resourcetemplates:
14 - apiVersion: tekton.dev/v1
15 kind: PipelineRun
16 metadata:
17 generateName: github-push-pipeline-apply-run-
18 spec:
19 pipelineRef:
20 name: github-push-pipeline-apply
21 workspaces:
22 - name: tekton-pipeline
23 persistentVolumeClaim:
24 claimName: tekton-pipeline
25 params:
26 - name: gitrevision
27 value: "$(tt.params.gitrevision)"
28 - name: gitrepositoryurl
29 value: $(tt.params.gitrepositoryurl)
Pipeline Execution
After the trigger fires, the pipeline reference executes:
Pipeline Configuration:
1apiVersion: tekton.dev/v1
2kind: Pipeline
3metadata:
4 name: github-push-pipeline-apply
5 namespace: tekton-pipelines
6spec:
7 workspaces:
8 - name: tekton-pipeline
9 params:
10 - name: gitrepositoryurl
11 description: Git repository URL
12 - name: gitrevision
13 description: Git revision to checkout
14 tasks:
15 - name: aws-cloud-terraform-shared-resources-apply
16 taskRef:
17 name: aws-cloud-terraform-shared-resources-apply
18 params:
19 - name: gitrepositoryurl
20 value: $(params.gitrepositoryurl)
21 - name: gitrevision
22 value: $(params.gitrevision)
23 workspaces:
24 - name: tekton-pipeline
25 workspace: tekton-pipeline
Task Execution
Task Definition:
1apiVersion: tekton.dev/v1
2kind: Task
3metadata:
4 name: aws-cloud-terraform-shared-resources-apply
5 namespace: tekton-pipelines
6spec:
7 workspaces:
8 - name: tekton-pipeline
9 params:
10 - name: gitrepositoryurl
11 description: Git repository URL
12 - name: gitrevision
13 description: Git revision to checkout
14 stepTemplate:
15 env:
16 - name: AWS_ACCESS_KEY_ID
17 valueFrom:
18 secretKeyRef:
19 name: tekton-aws-creds
20 key: AWS_ACCESS_KEY_ID
21 - name: AWS_SECRET_ACCESS_KEY
22 valueFrom:
23 secretKeyRef:
24 name: tekton-aws-creds
25 key: AWS_SECRET_ACCESS_KEY
26 - name: AWS_REGION
27 valueFrom:
28 secretKeyRef:
29 name: tekton-aws-creds
30 key: AWS_REGION
31 steps:
32 - name: git-clone
33 image: alpine/git
34 script: |
35 #!/bin/sh
36 rm -rf /workspace/tekton-pipeline/*
37 git clone $(params.gitrepositoryurl) /workspace/tekton-pipeline/repo
38 cd /workspace/tekton-pipeline/repo
39 git checkout $(params.gitrevision)
40 workingDir: /workspace/tekton-pipeline
41 - name: terraform-init
42 image: hashicorp/terraform
43 script: |
44 #!/bin/sh
45 cd /workspace/tekton-pipeline/repo/aws/terraform/shared-resources
46 terraform init
47 - name: terraform-apply
48 image: hashicorp/terraform
49 script: |
50 #!/bin/sh
51 cd /workspace/tekton-pipeline/repo/aws/terraform/shared-resources
52 terraform apply
A pipeline in Tekton is essentially a collection of tasks, and each task is composed of multiple steps. Each step defines a specific action that can be performed, similar to stages in GitHub Actions or GitLab CI. These steps can execute public or private container images and run custom scripts or commands through an entry point.
Final Thoughts
What I like about Tekton is its dashboard, allowing users to manage pipelines, view logs, and rerun or edit tasks. Compared to GitHub Actions, GitLab CI, or Jenkins, Tekton is a powerful tool that integrates well with Kubernetes-native tools like Helm. I will continue using Tekton to manage my homelab, learn more, and possibly contribute to the community.
